Neonatal Echo Simulation

∎

Virtual Neonatal Echocardiographic Training Simulator (VNETS) is developed with exclusive emphasis on neonates and young infants. This system has the capability of simulating real-time scanning from all acoustic windows. It offers the capability of performing real time two-dimensional (2D) echocardiography and color flow Doppler, spectral Doppler, and M-mode modalities from specific sector cuts.

Demonstration of Left Ventricular Output Measurement

∎

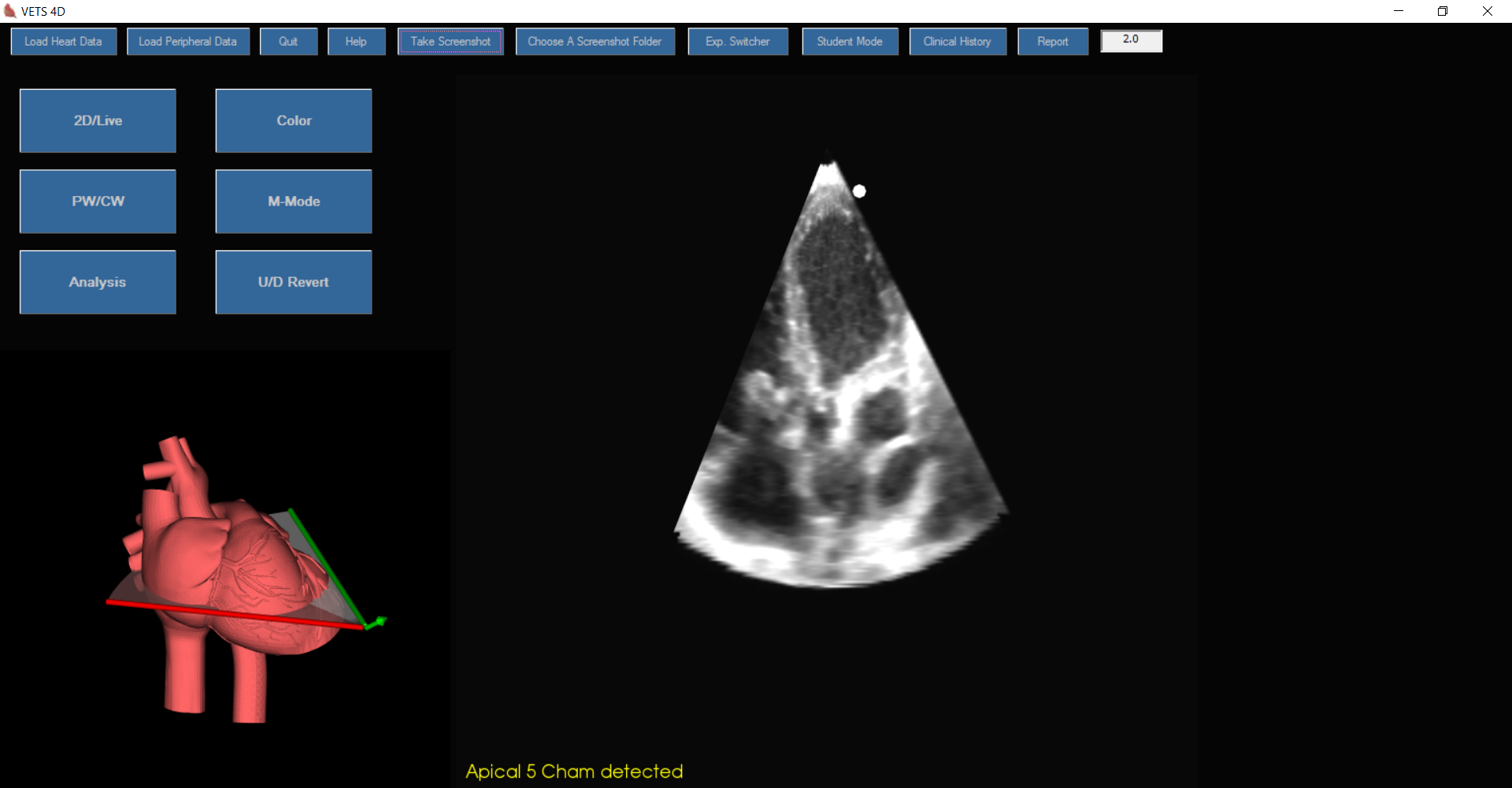

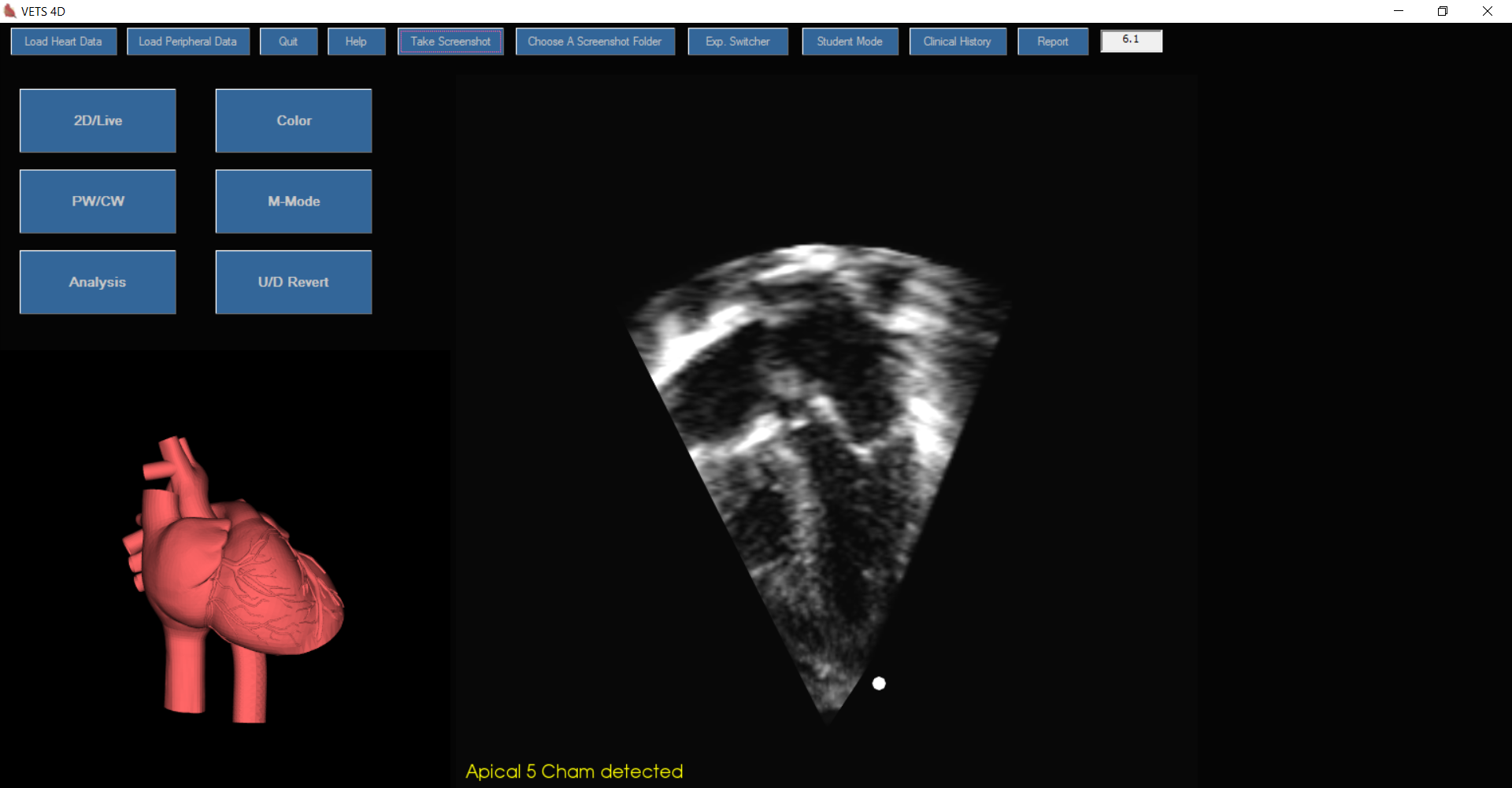

Apical 5 chamber view -- 2D

Apical 5 chamber view -- 2D

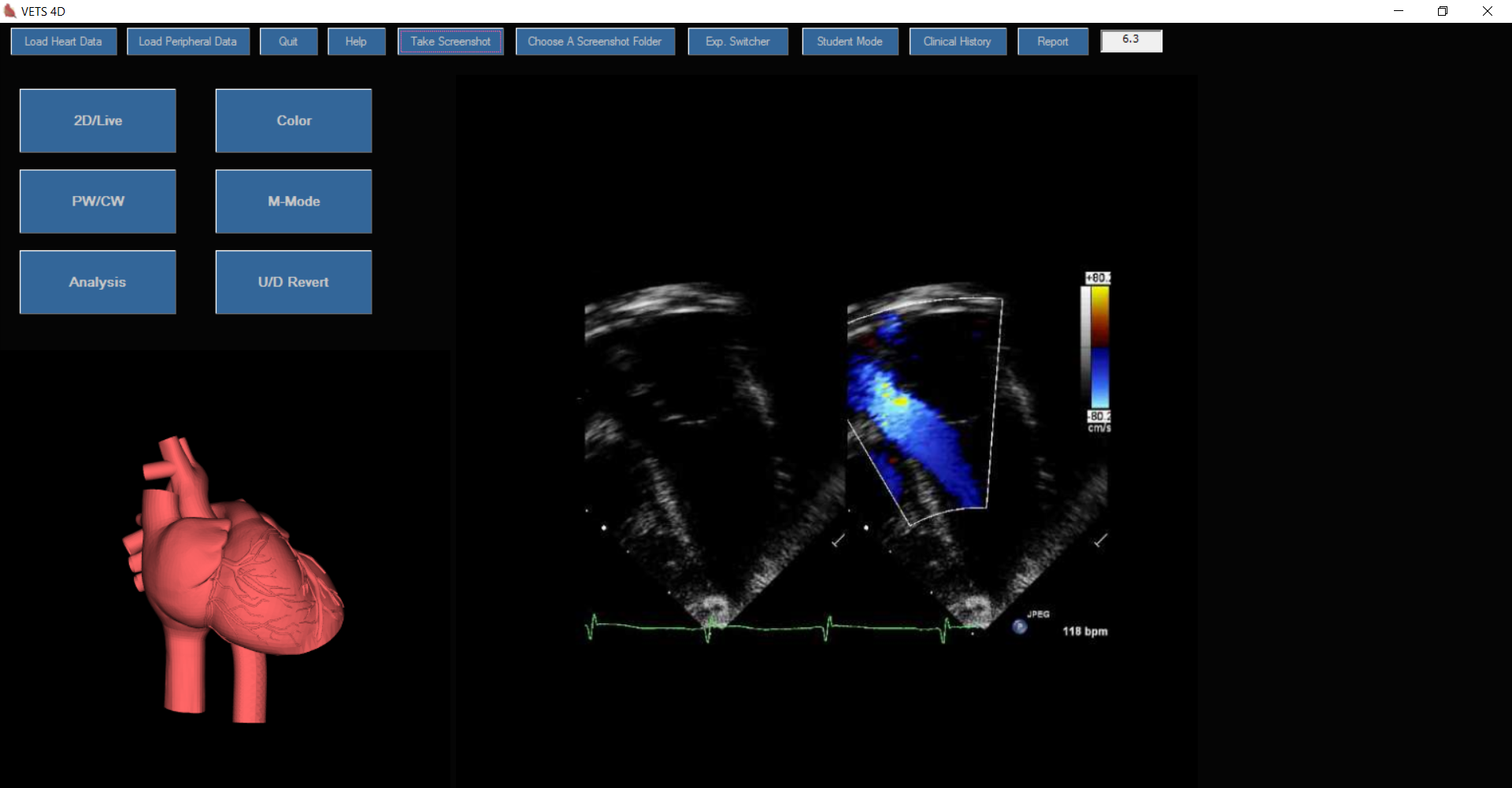

Apical 5 chamber view -- color flow

Apical 5 chamber view -- color flow

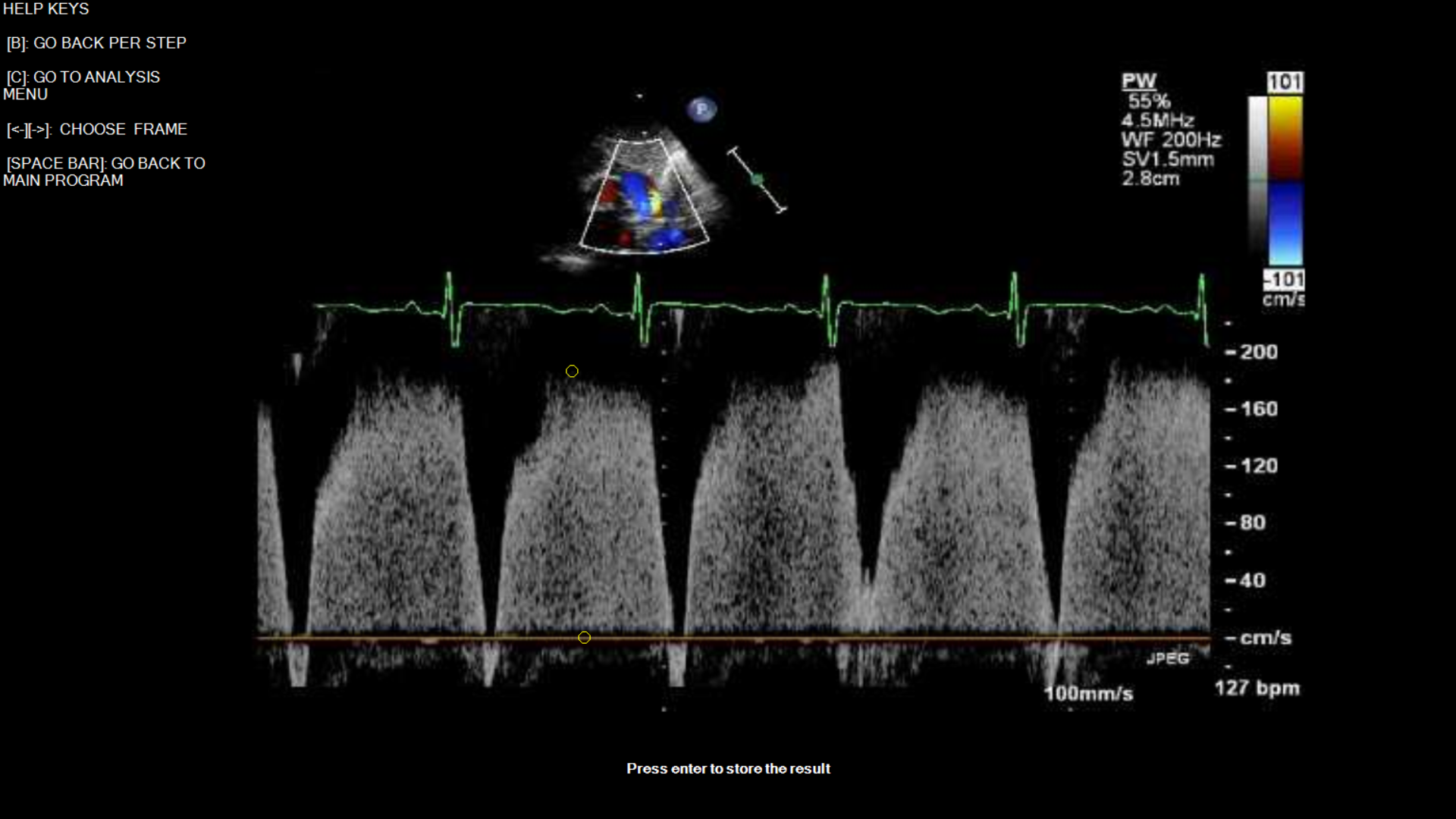

PW Doppler, RR measurement, Tracing Spectral Doppler

PW Doppler, RR measurement, Tracing Spectral Doppler

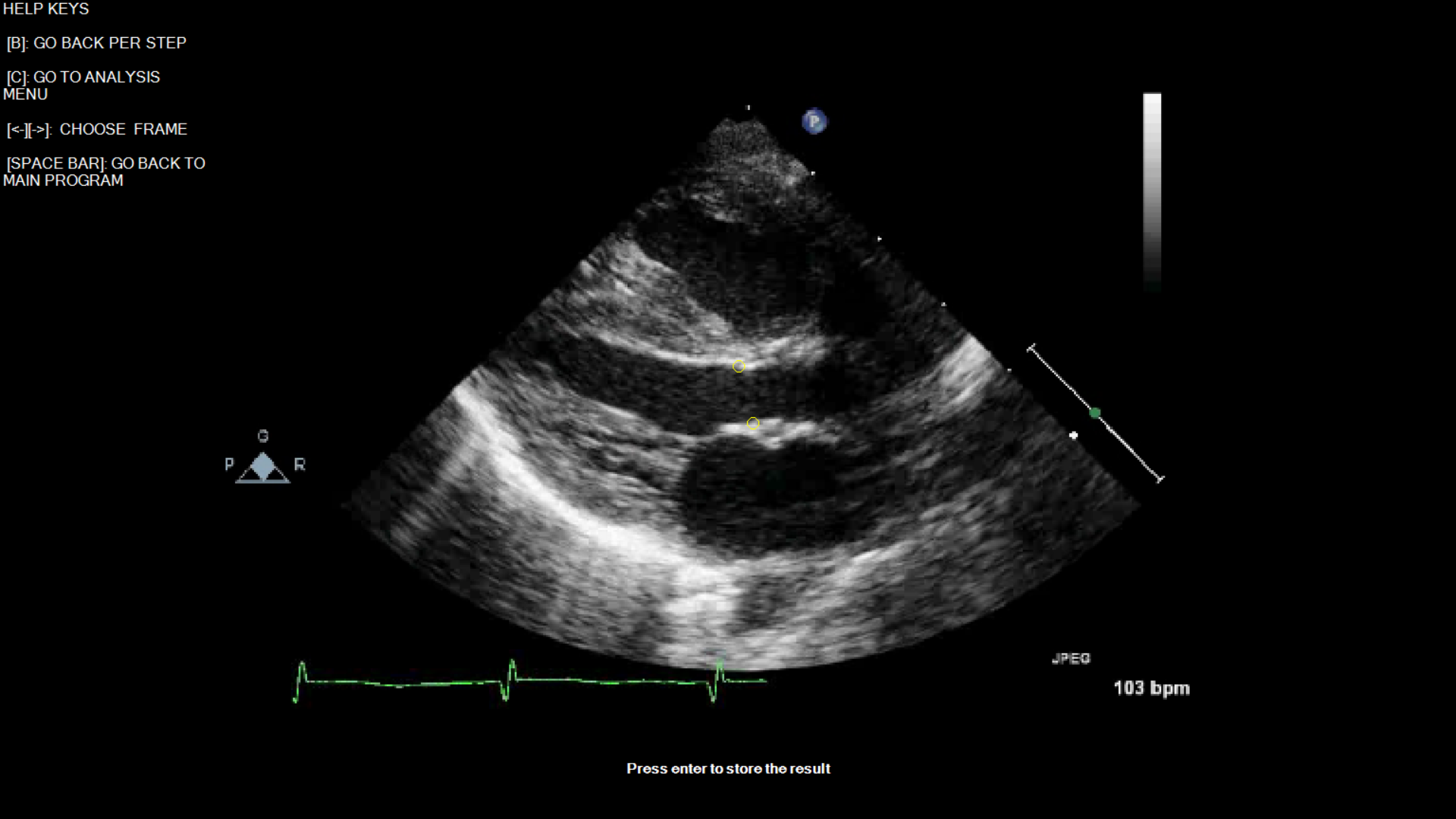

Long axis view, Aortic diameter

Long axis view, Aortic diameter

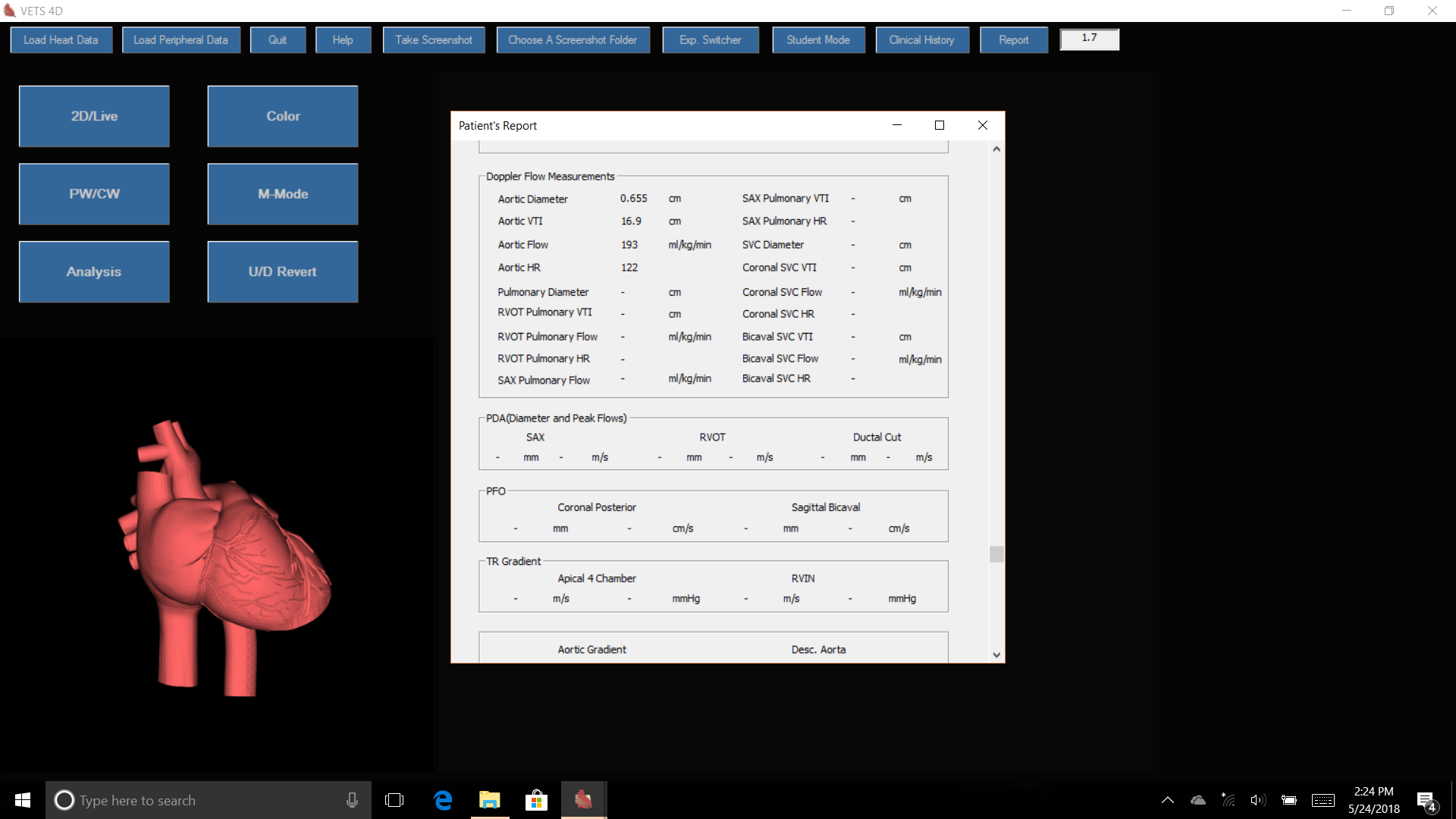

Left Ventricle Report

Report

Demonstration of estimation of TR gradient

∎

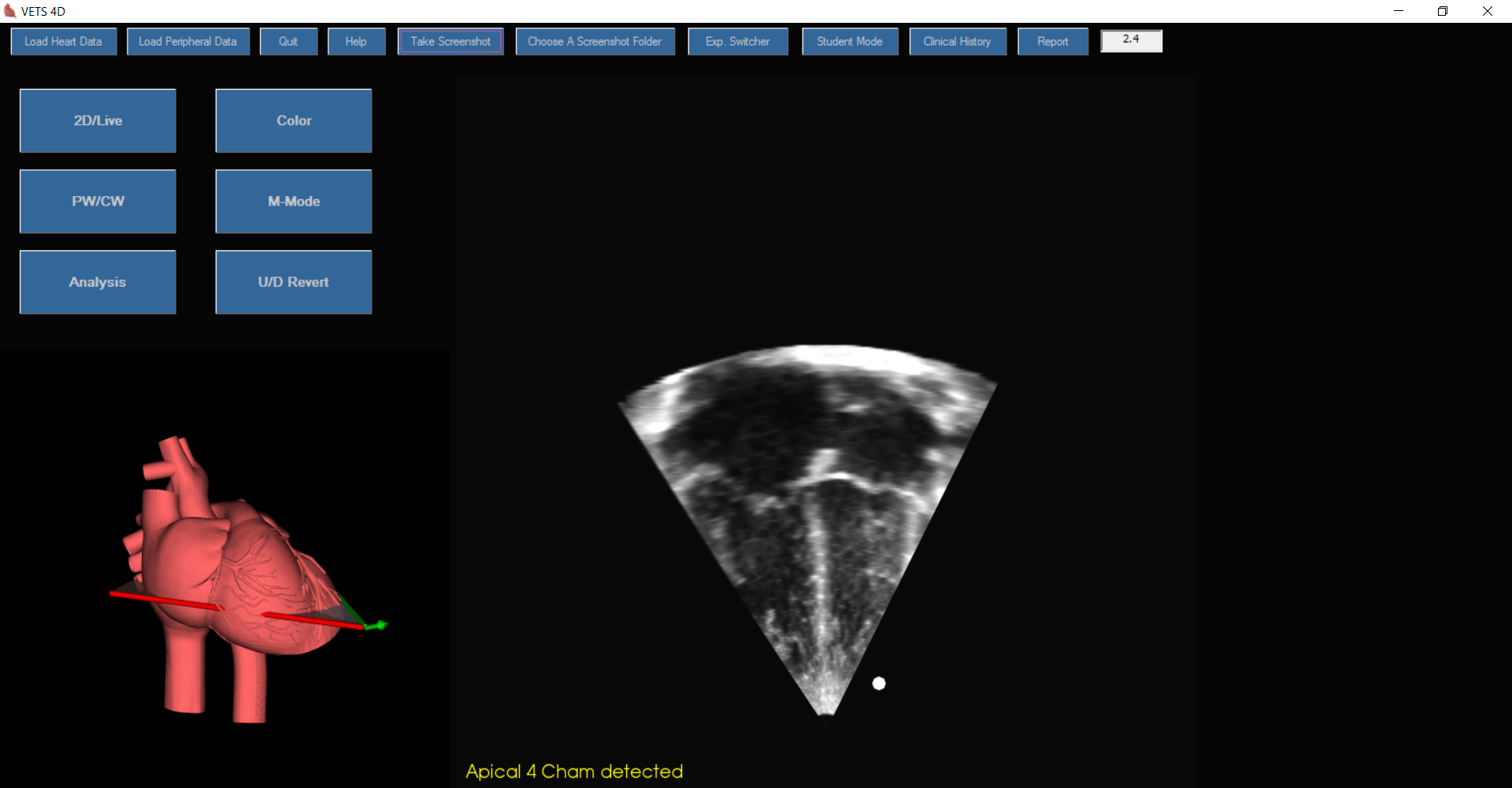

Apical 4 cham view -- 2D

Apical 4 cham view -- 2D

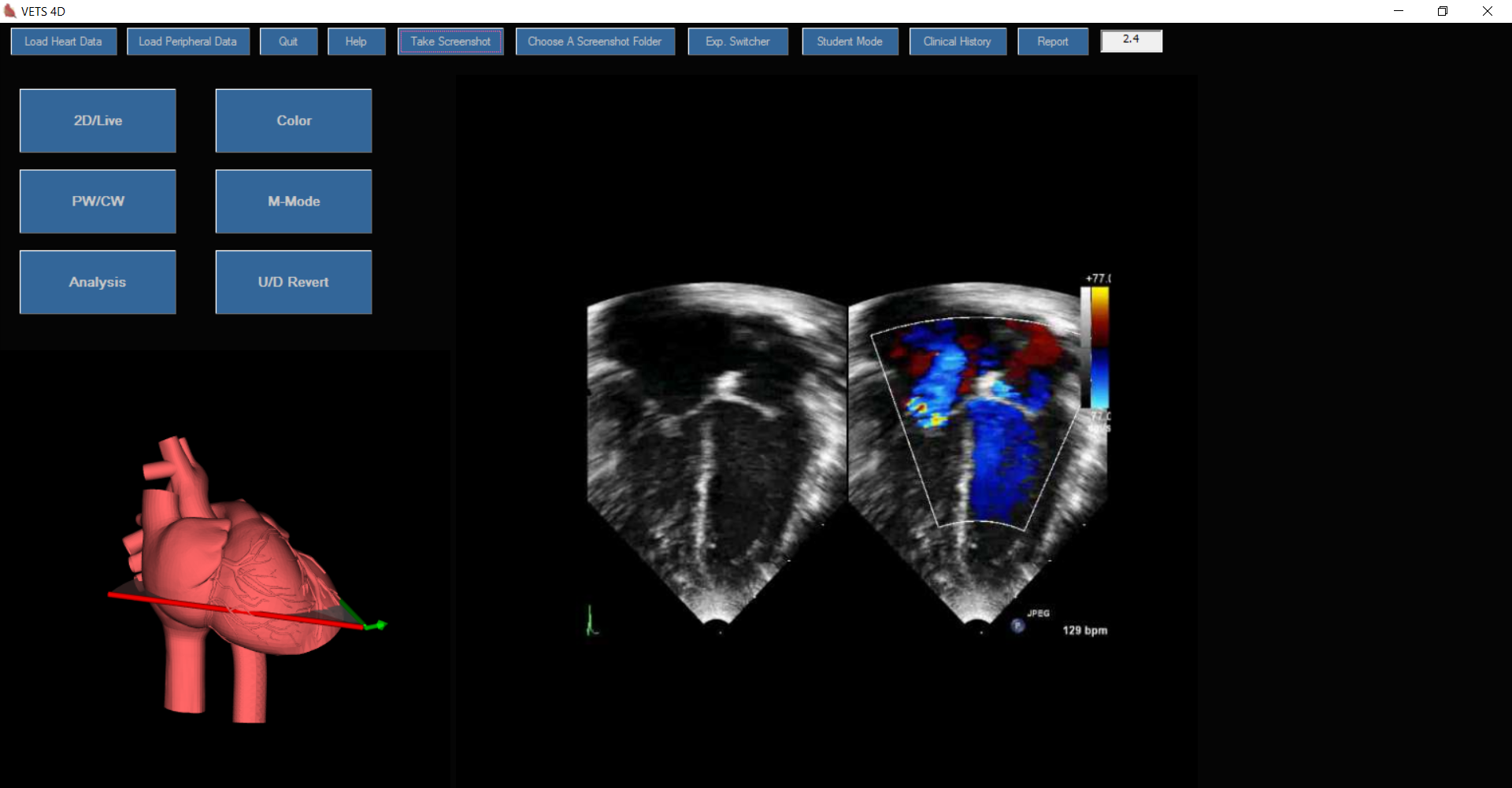

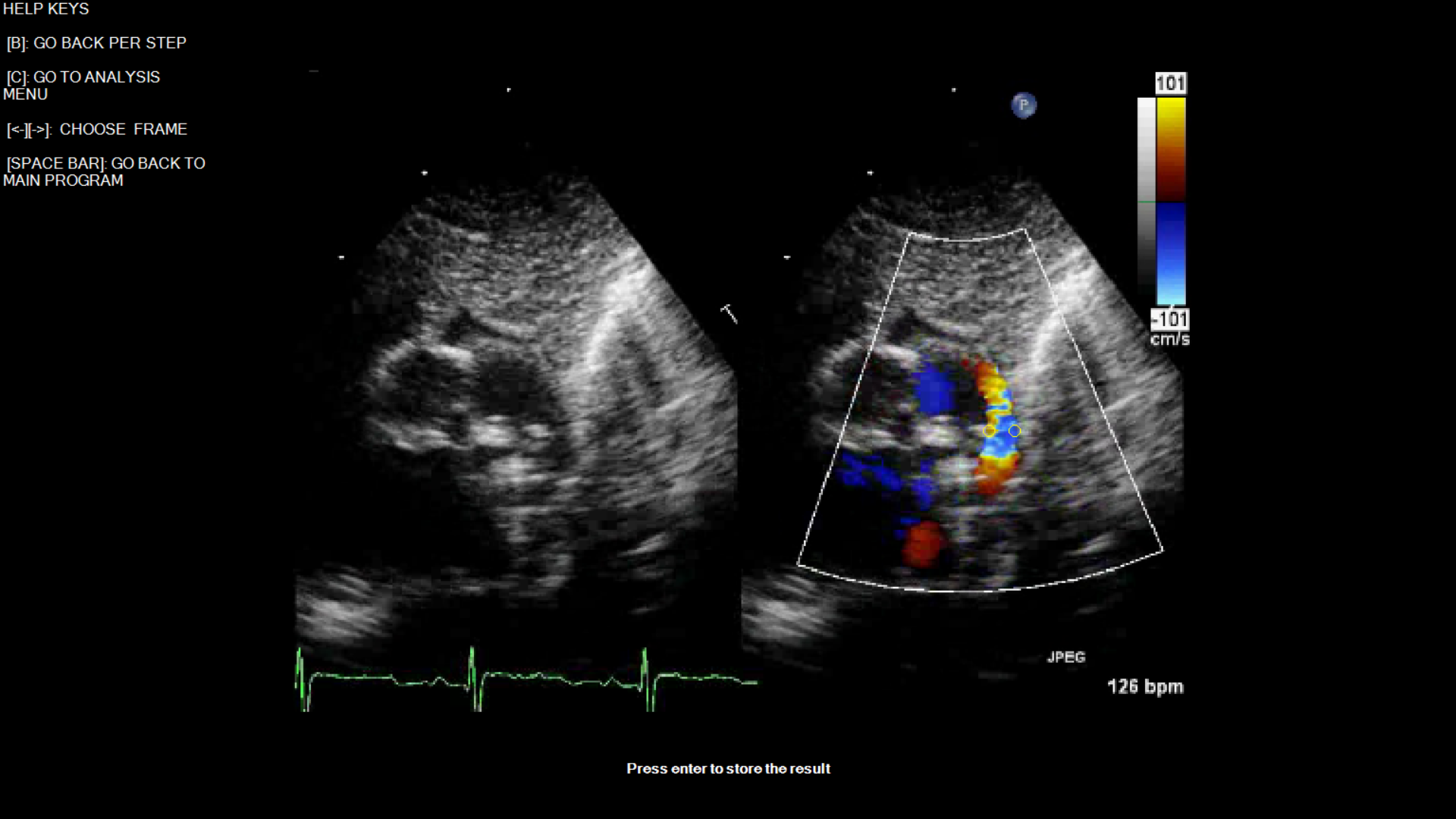

Apical 4 cham view -- color flow

Apical 4 cham view -- color flow

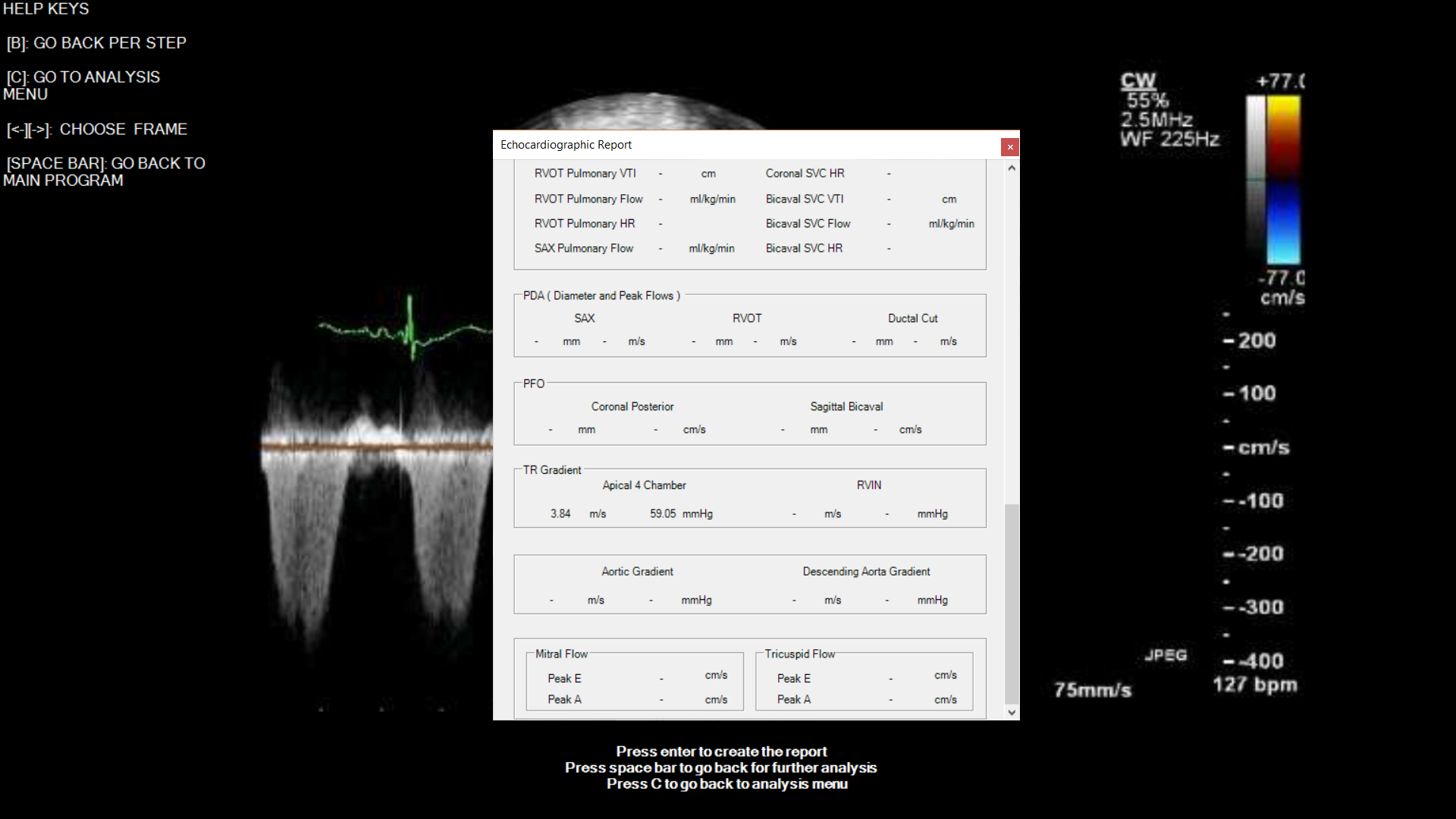

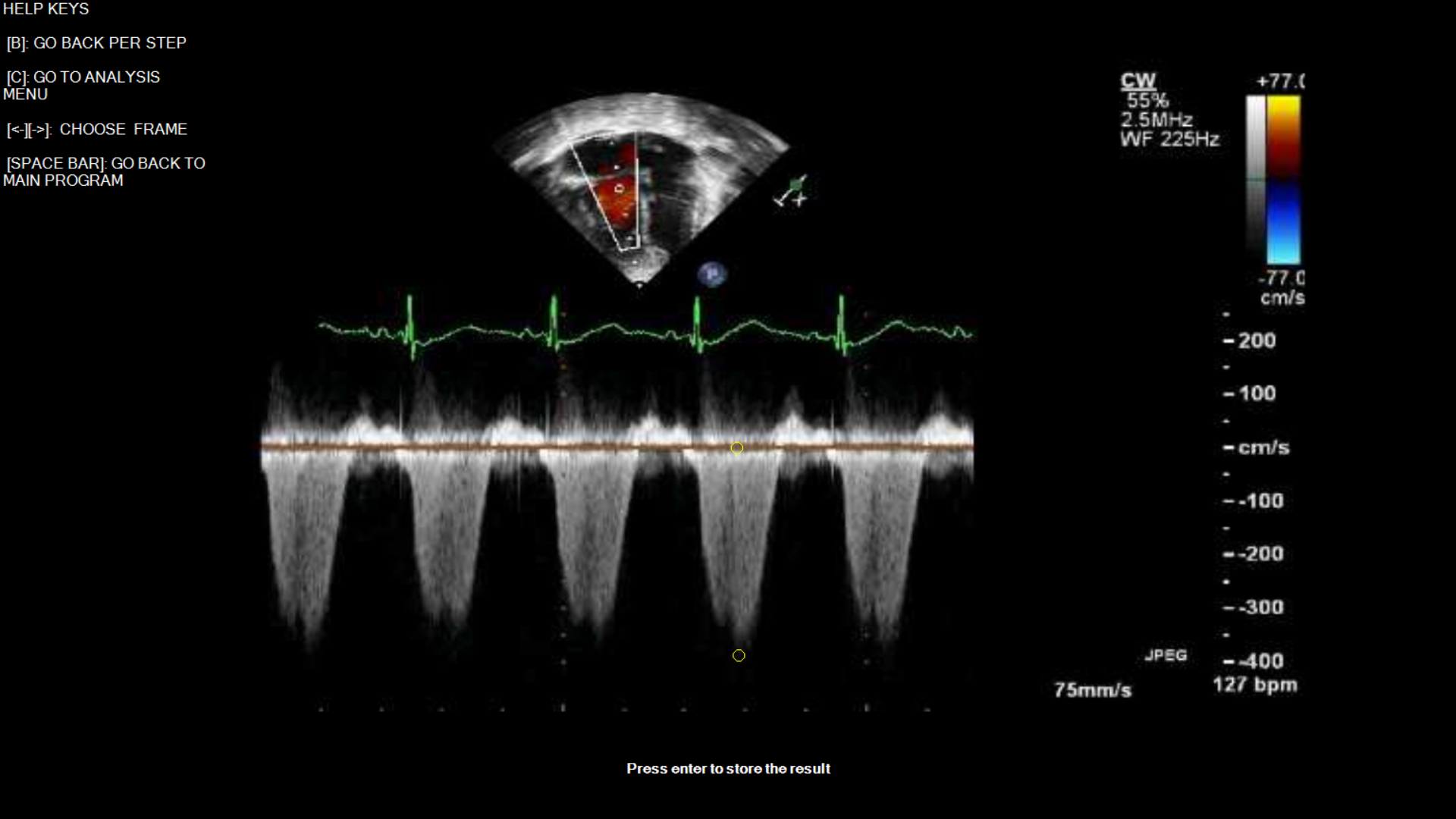

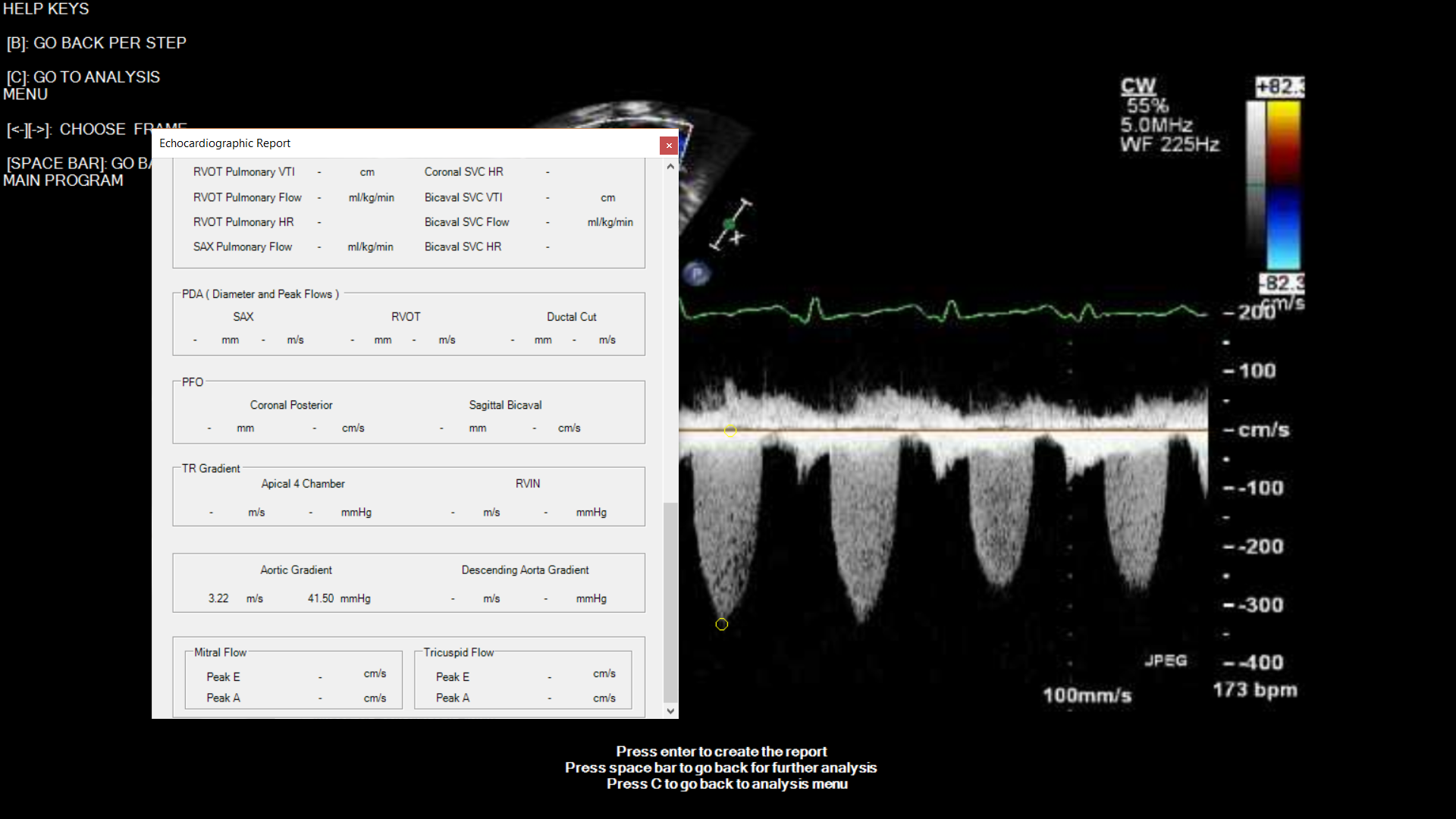

CW Doppler, peak velocity measurement

CW Doppler, peak velocity measurement

TR gradient report

Report

Demonstration of PDA Measurement

∎

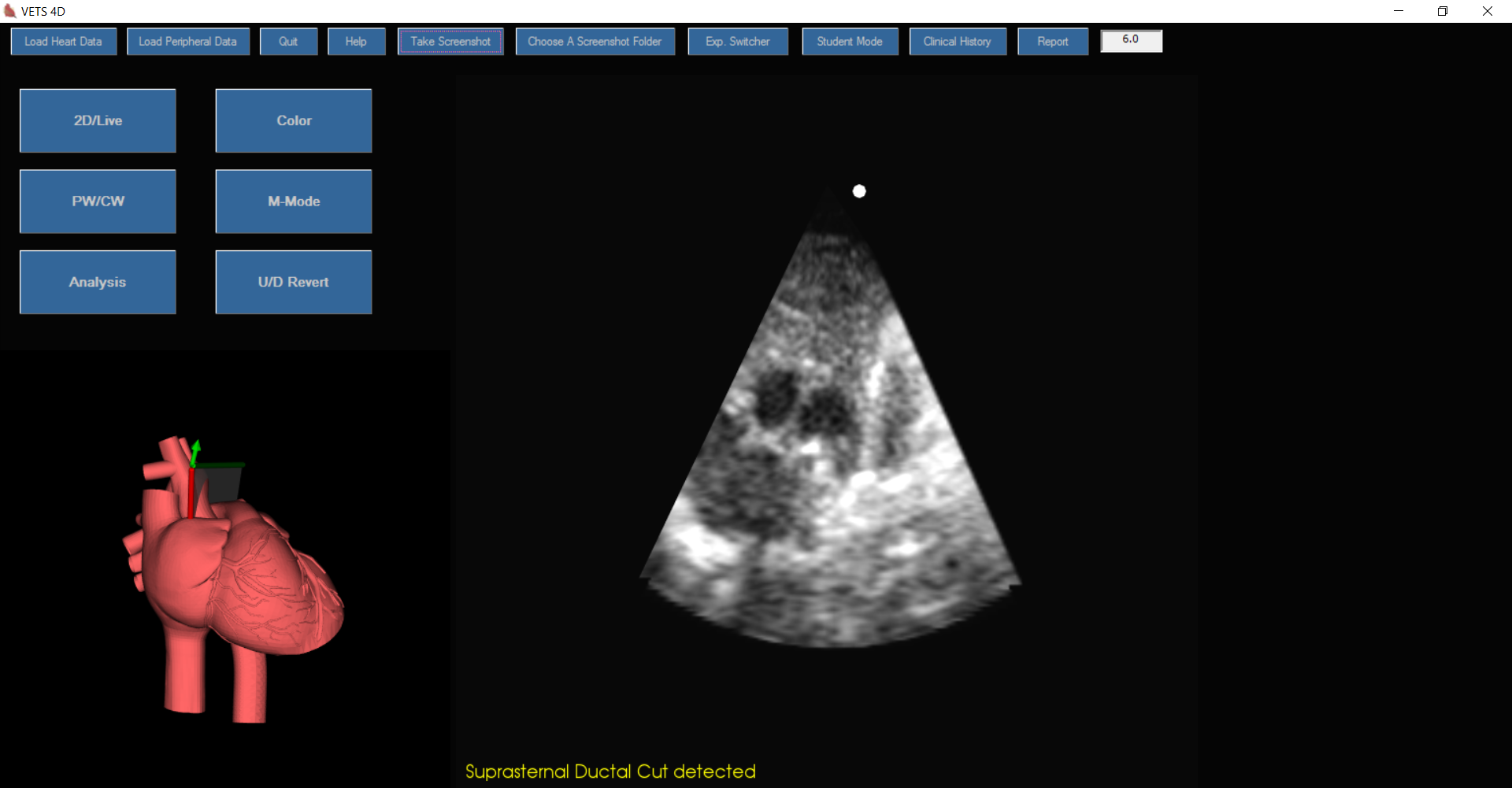

Suprasternal view of the PDA -- 2D

Suprasternal view of the PDA -- 2D

Suprasternal view of the PDA -- color flow

Suprasternal view of the PDA -- color flow

Measurement of PDA diameter

Measurement of PDA diameter

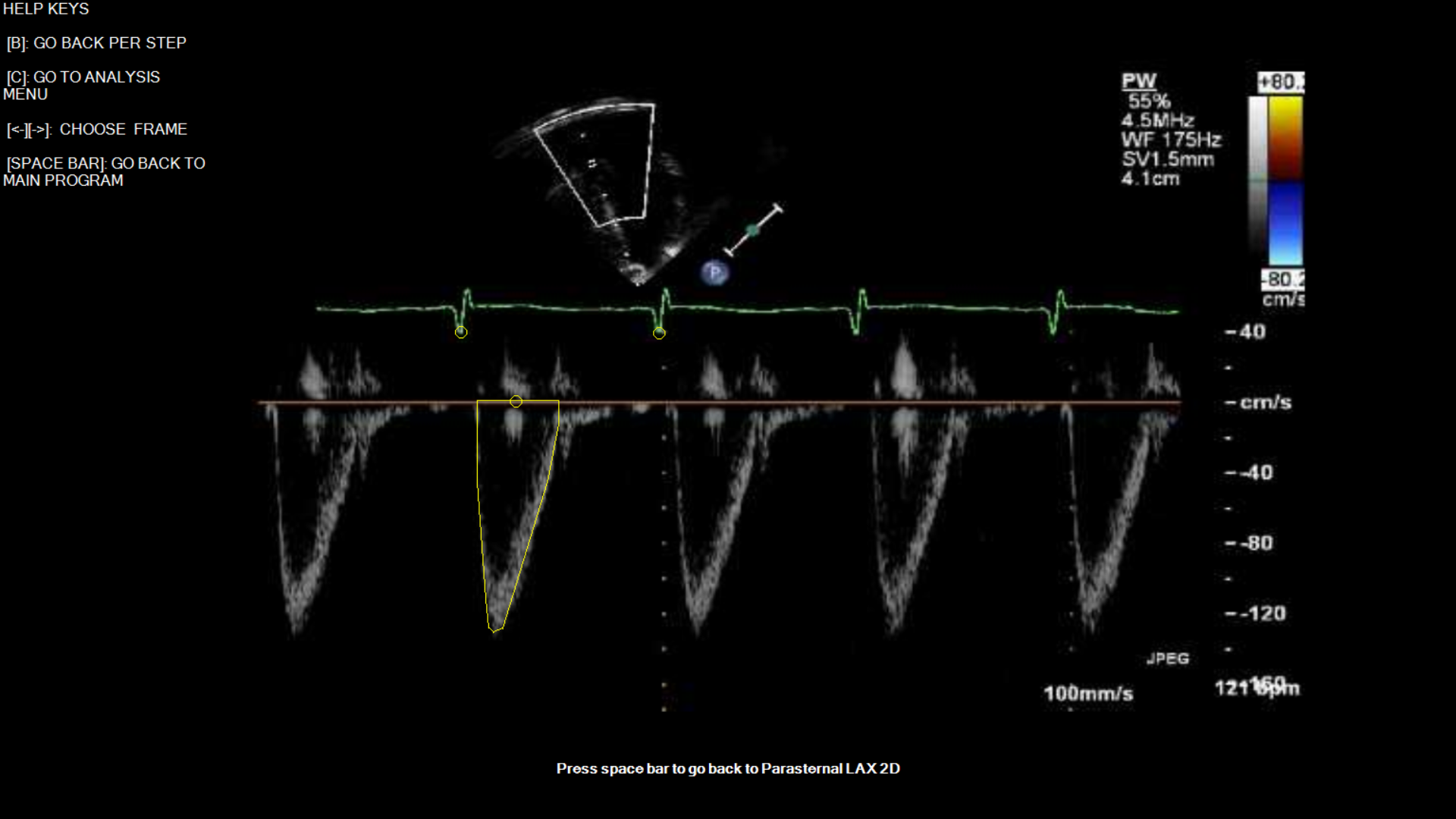

Measurement of peak velocity

Measurement of peak velocity

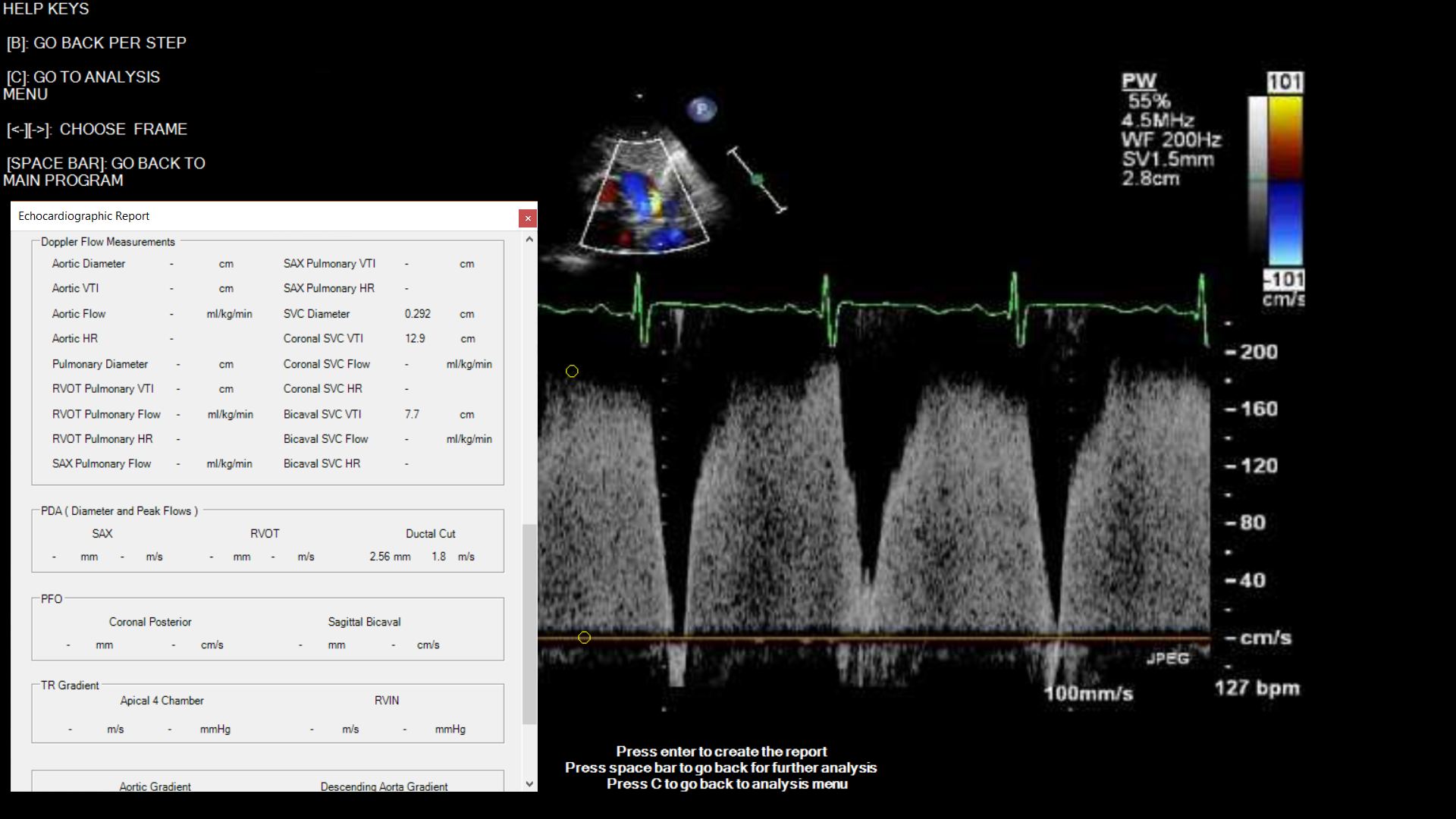

Report

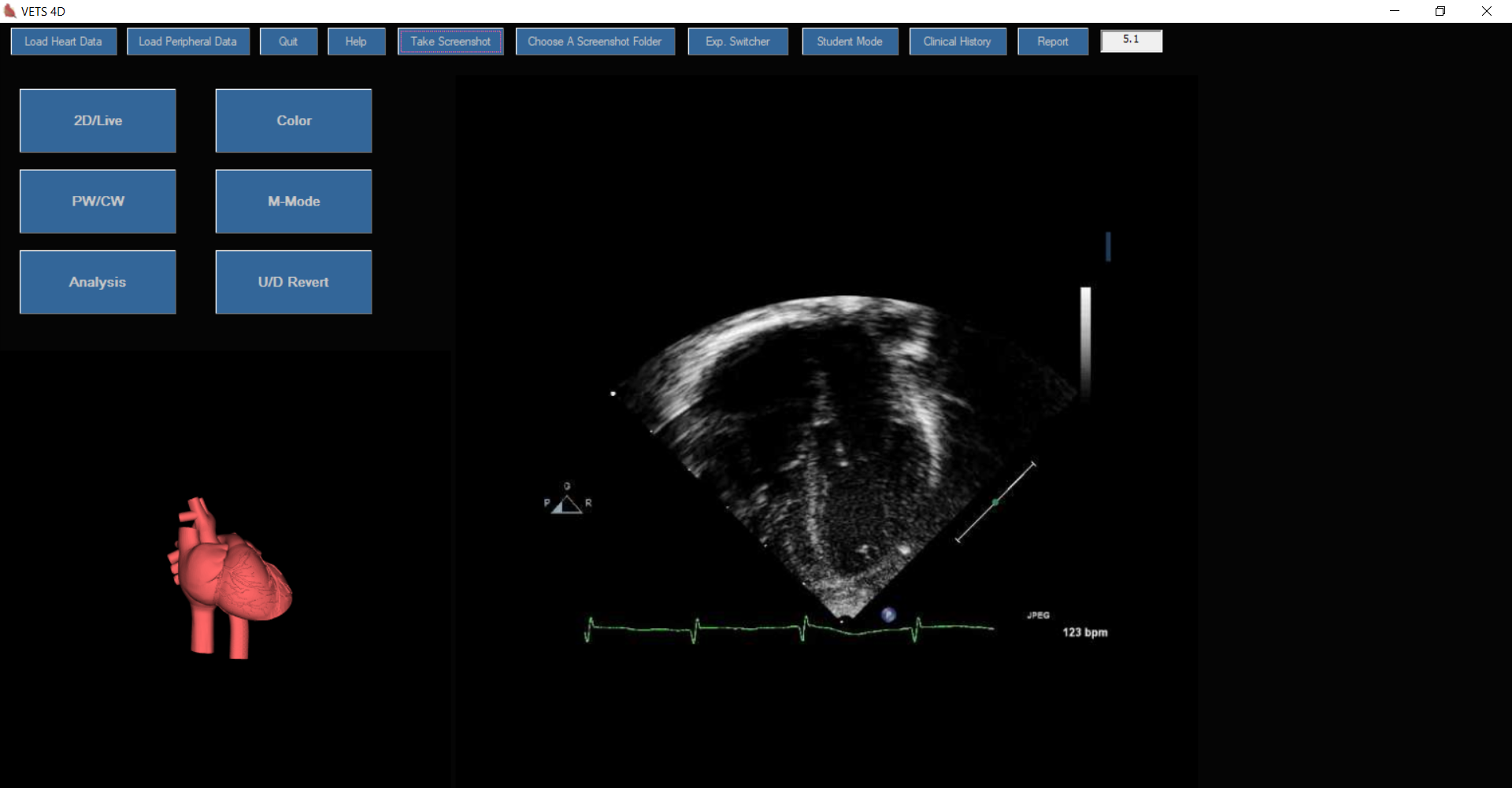

Apical 4 Chamber 2D

Apical 4 chamber 2D

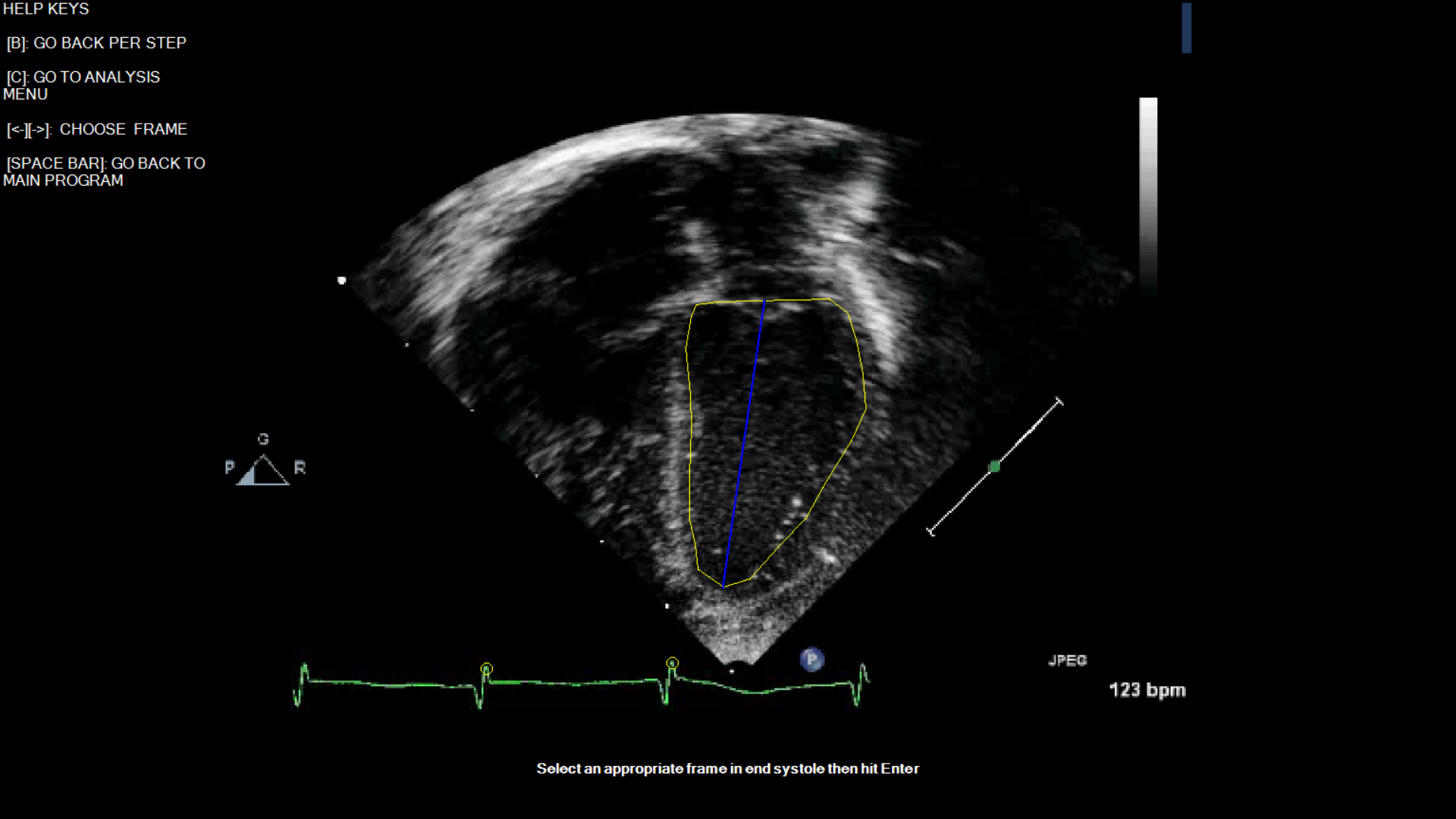

Apical 4 chamber end diastolic

Apical 4 chamber end diastolic measurement

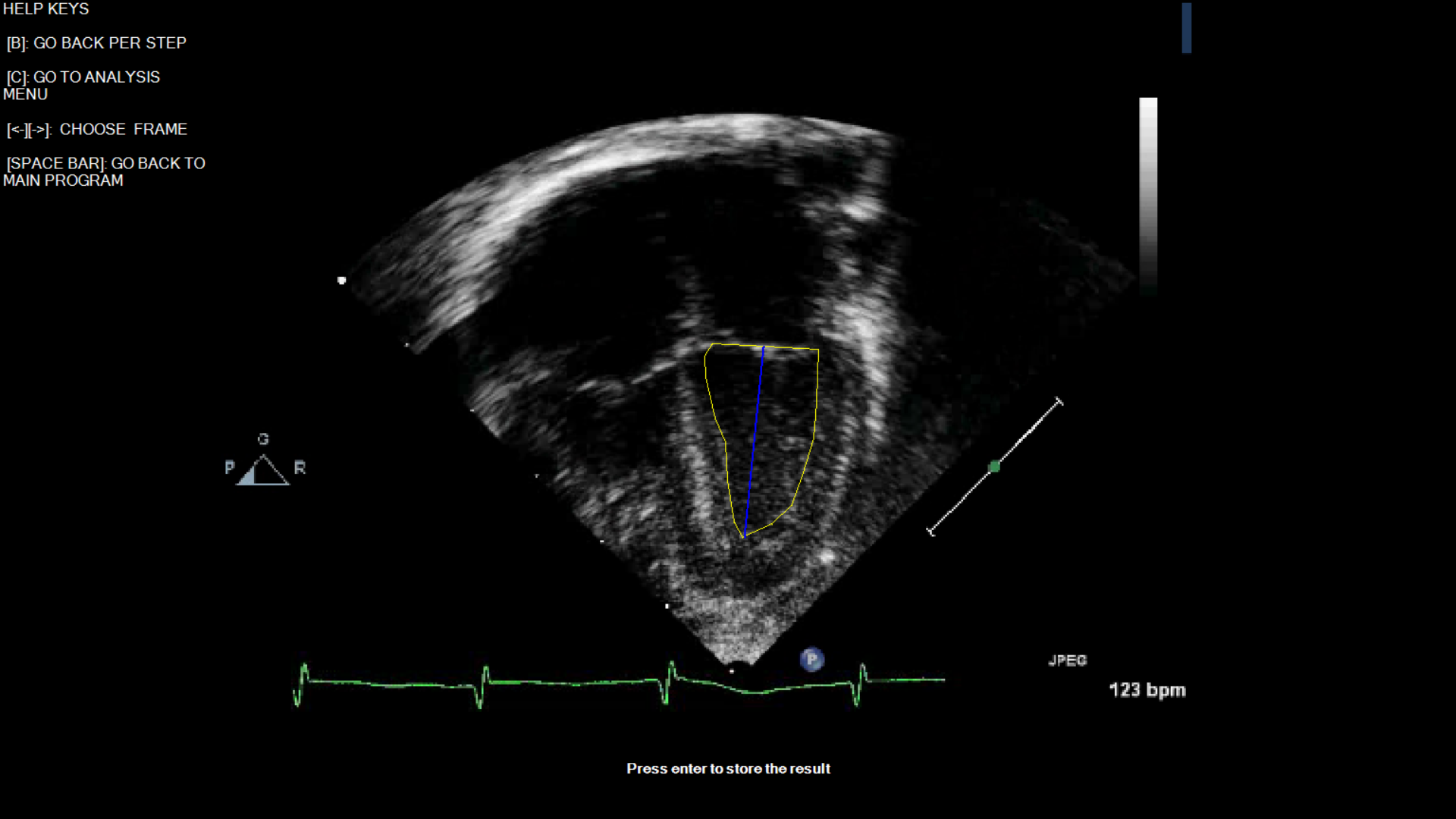

Apical 4 chamber end systolic

Apical 4 chamber end systolic measurement

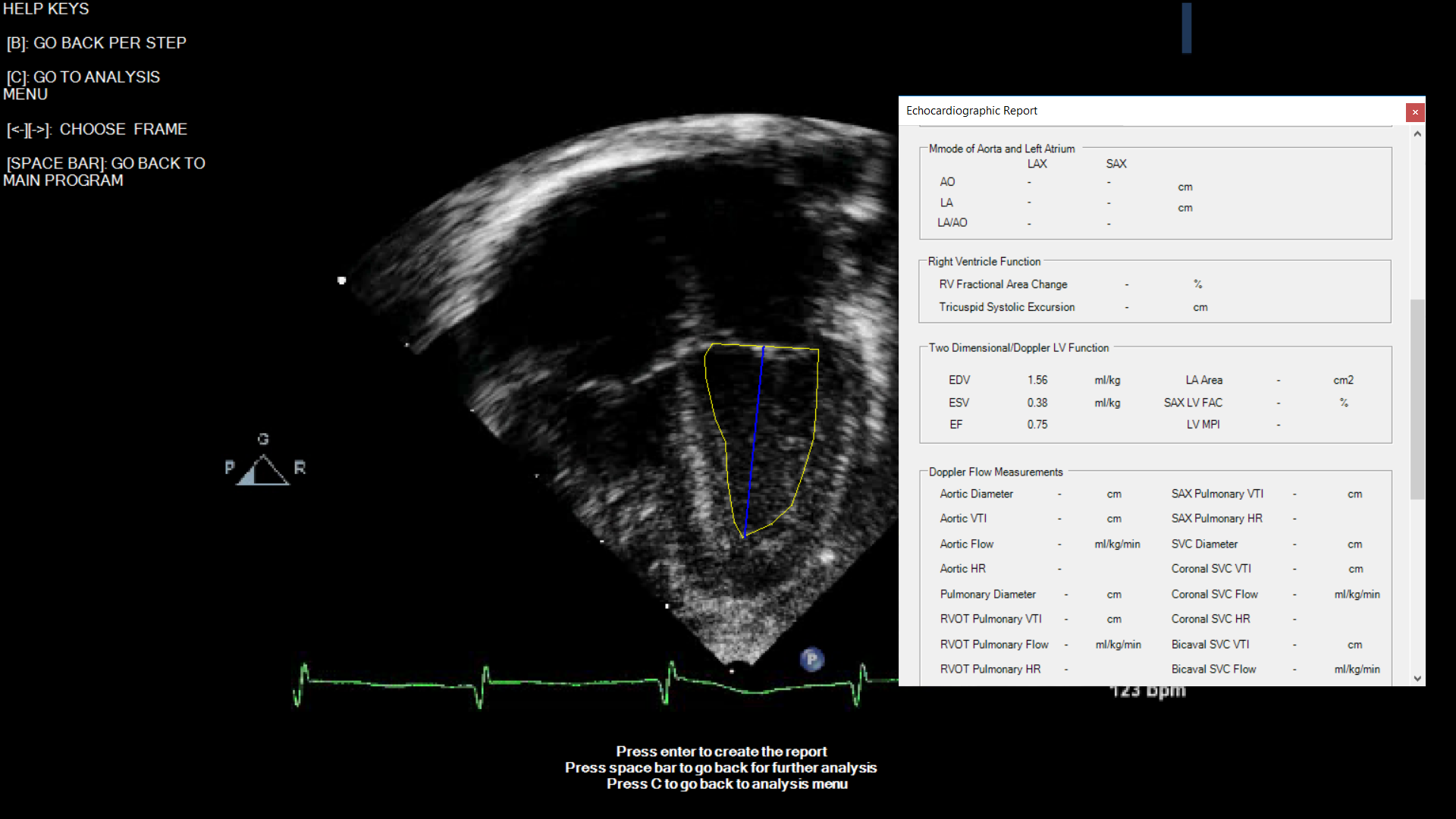

Report, Ejection Fraction by modified Simpson's rule.

Report, Ejection Fraction by modified Simpson's rule.

A case of coarctation of aorta

∎

Suprasternal view of the aorta -- 2D

Suprasternal view of the aorta -- 2D

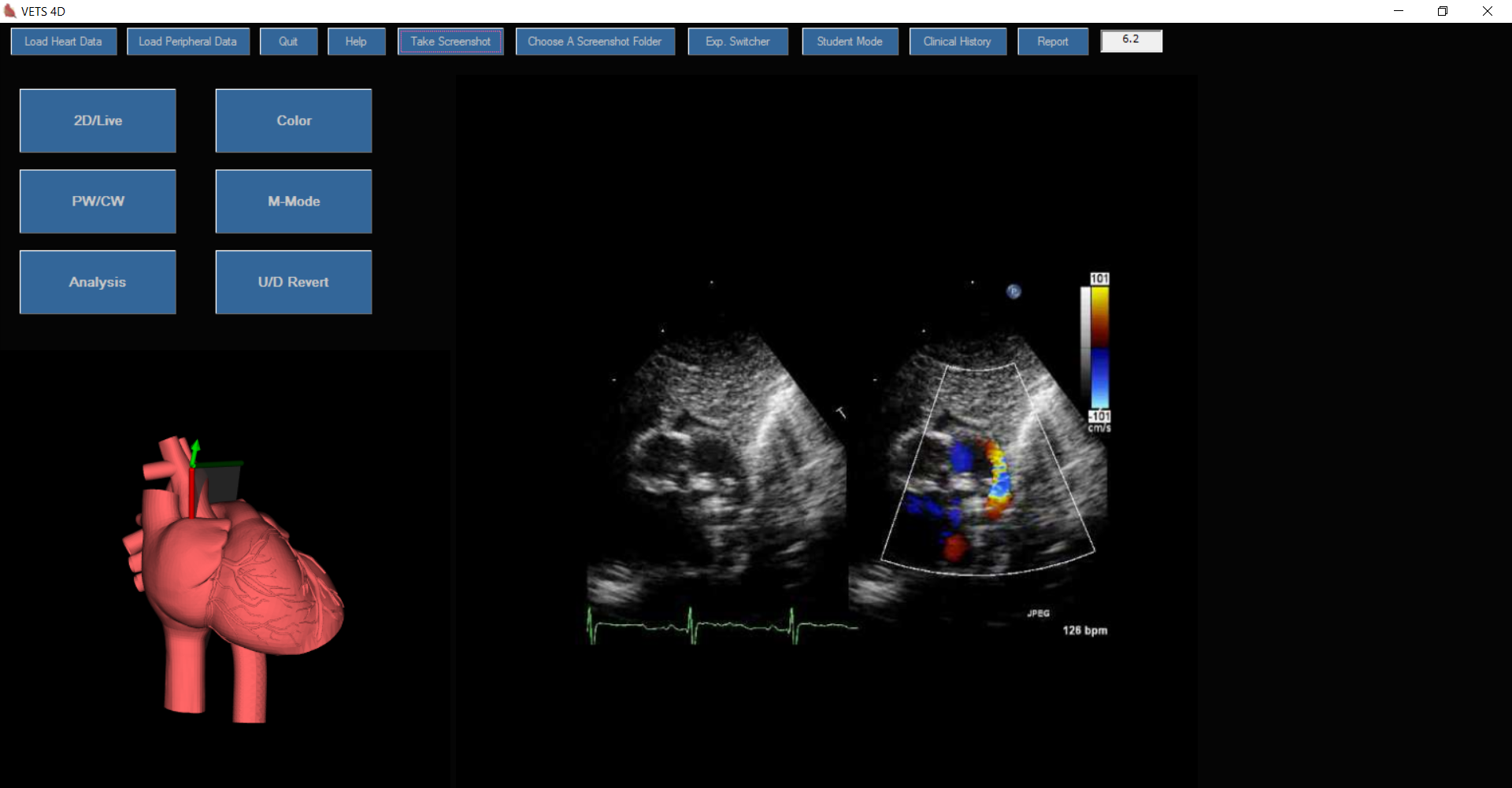

Suprasternal view of the aorta -- color flow

Suprasternal view of the aorta -- color flow

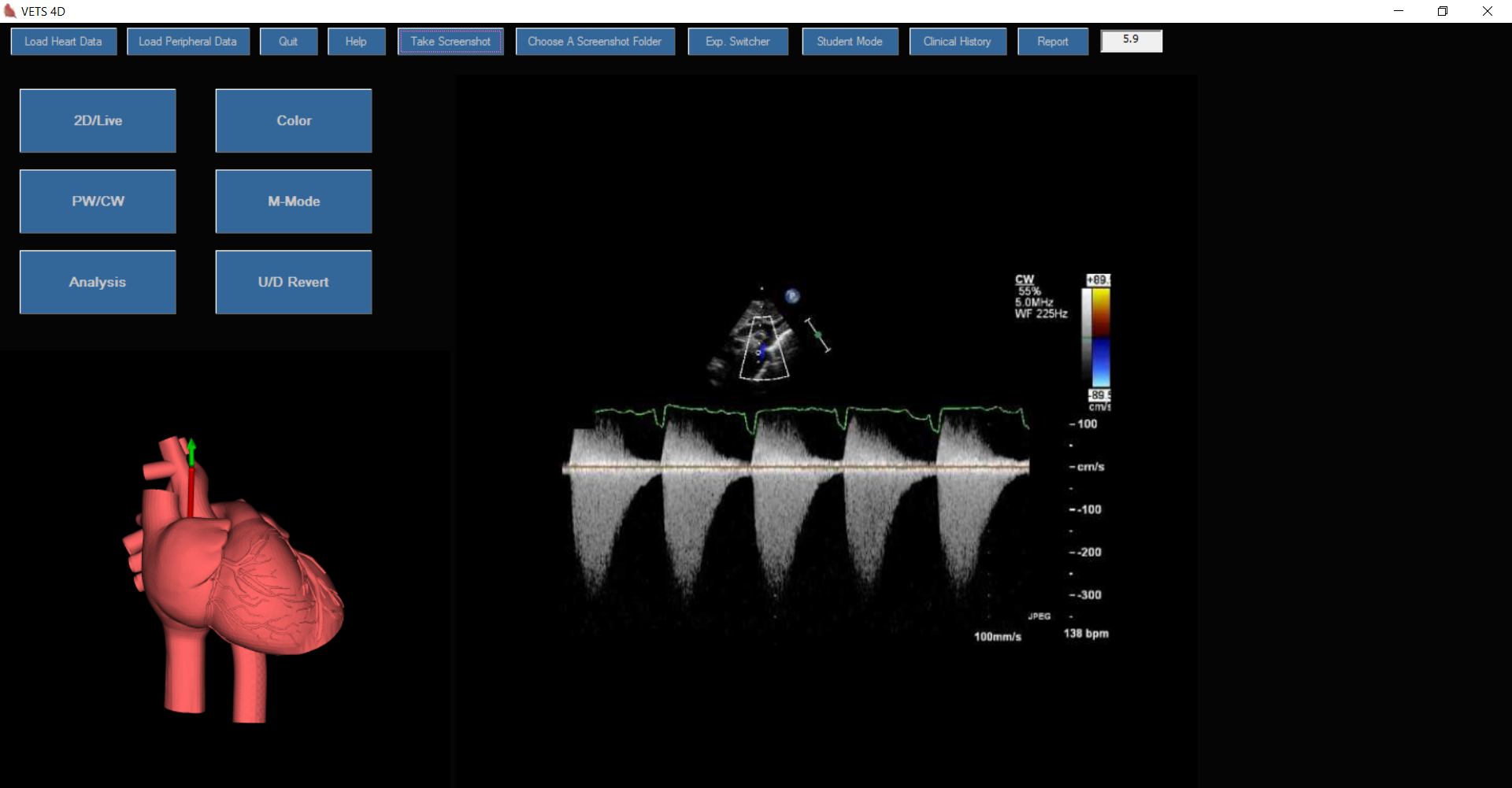

CW Dopper of descending aorta at coarctation site

CW Dopper of descending aorta at coarctation site

A case of critical aortic stenosis

∎

Apical 5 chamber view -- 2D

Apical 5 chamber view -- 2D

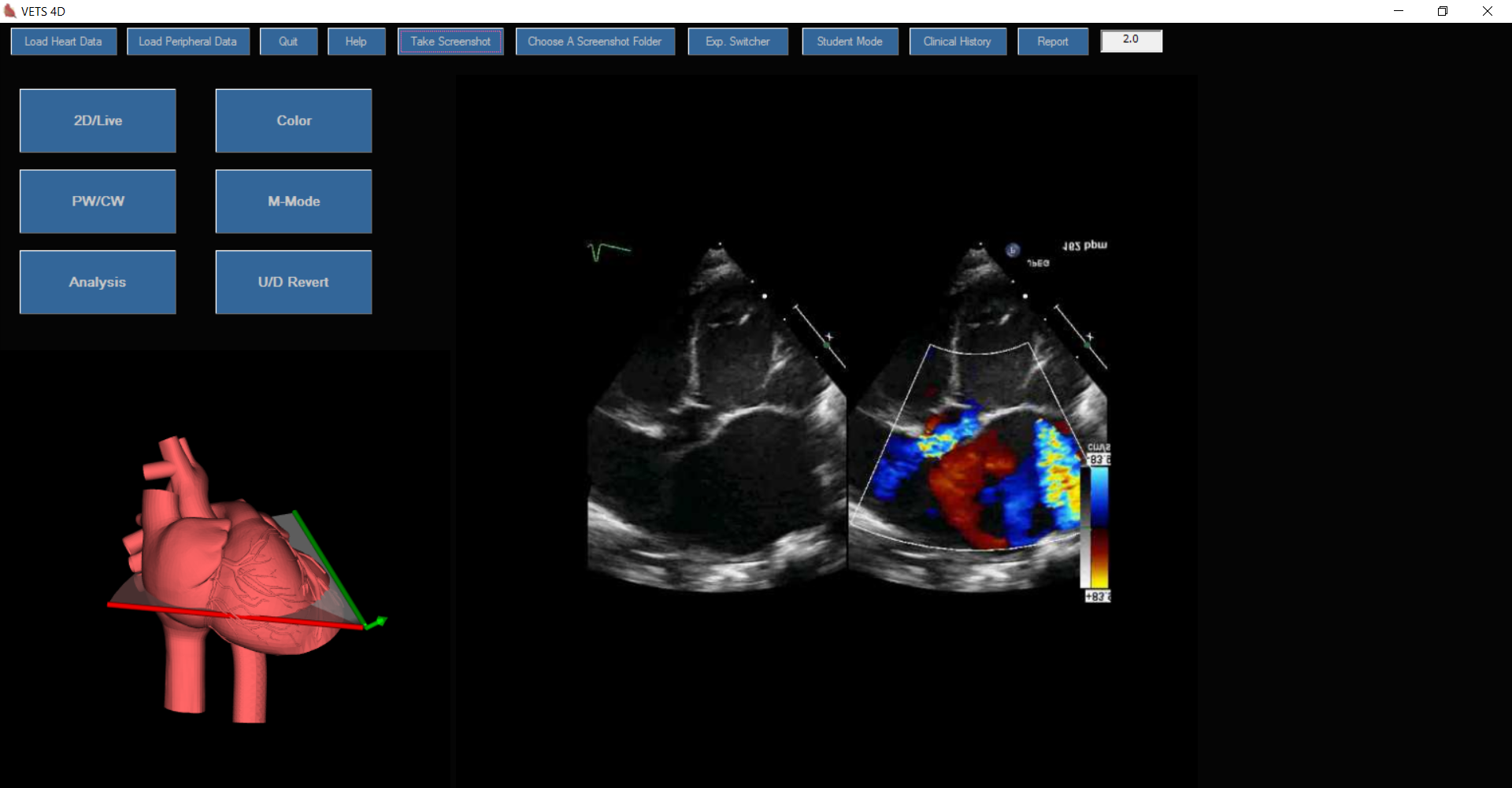

Apical 5 chamber view -- color flow

Apical 5 chamber view -- color flow, demonstrating stenotic value and flow turbulance

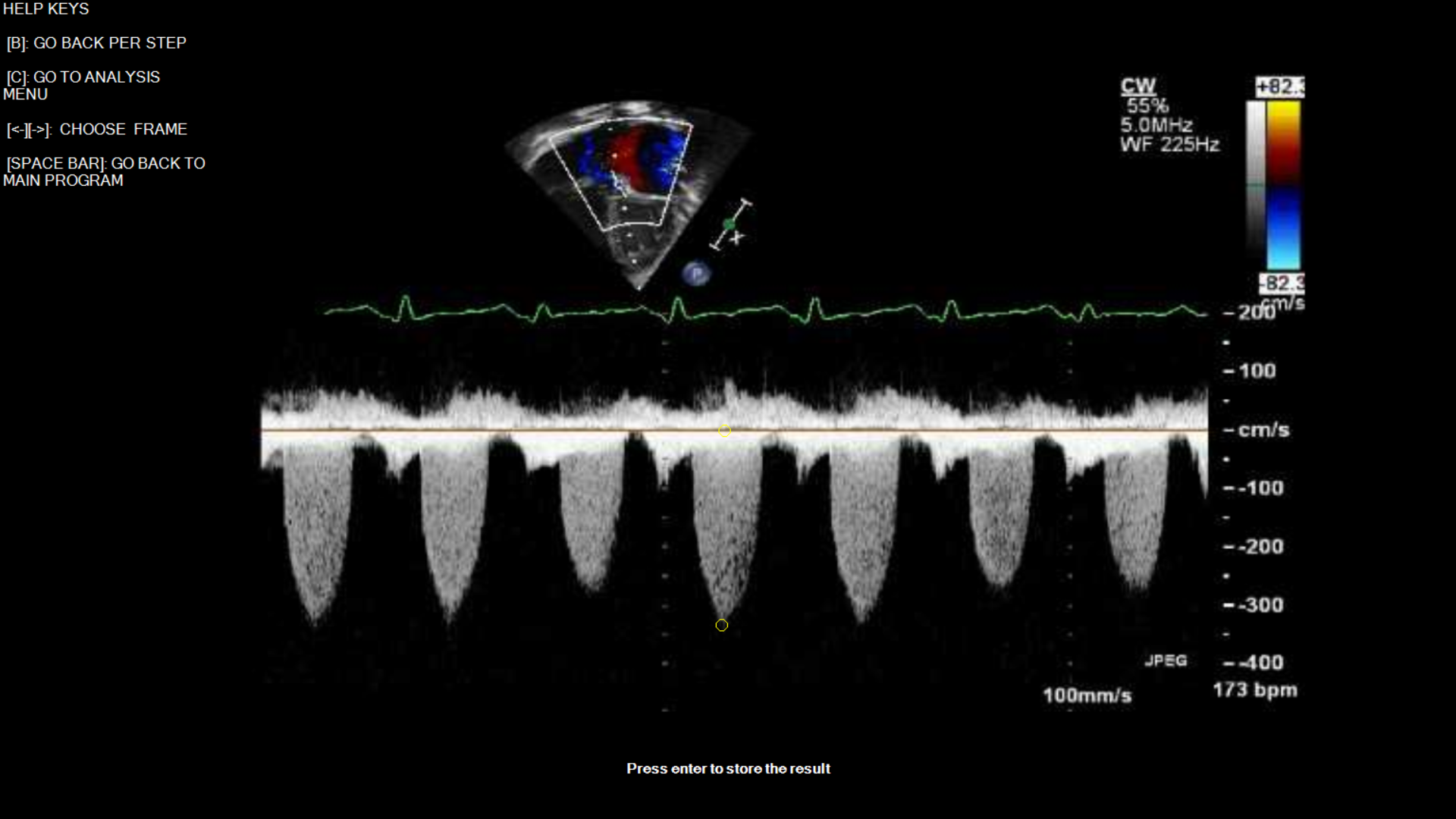

CW Doppler, demonstrating abnormal high gradient

CW Doppler, demonstrating abnormal high gradient

critical as report

Report

A case of Tetralogy of Fallot with pulmonary atresia

∎

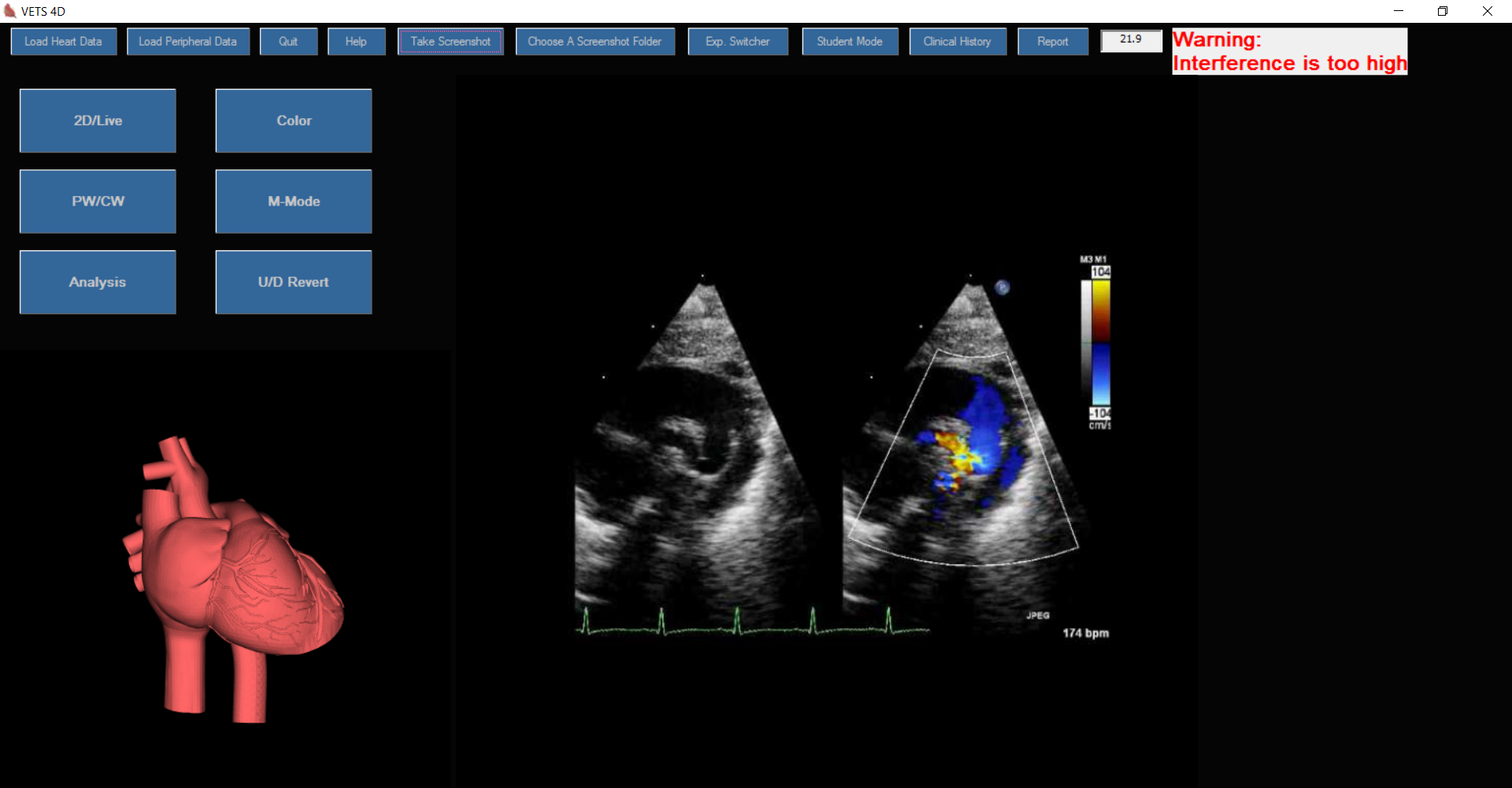

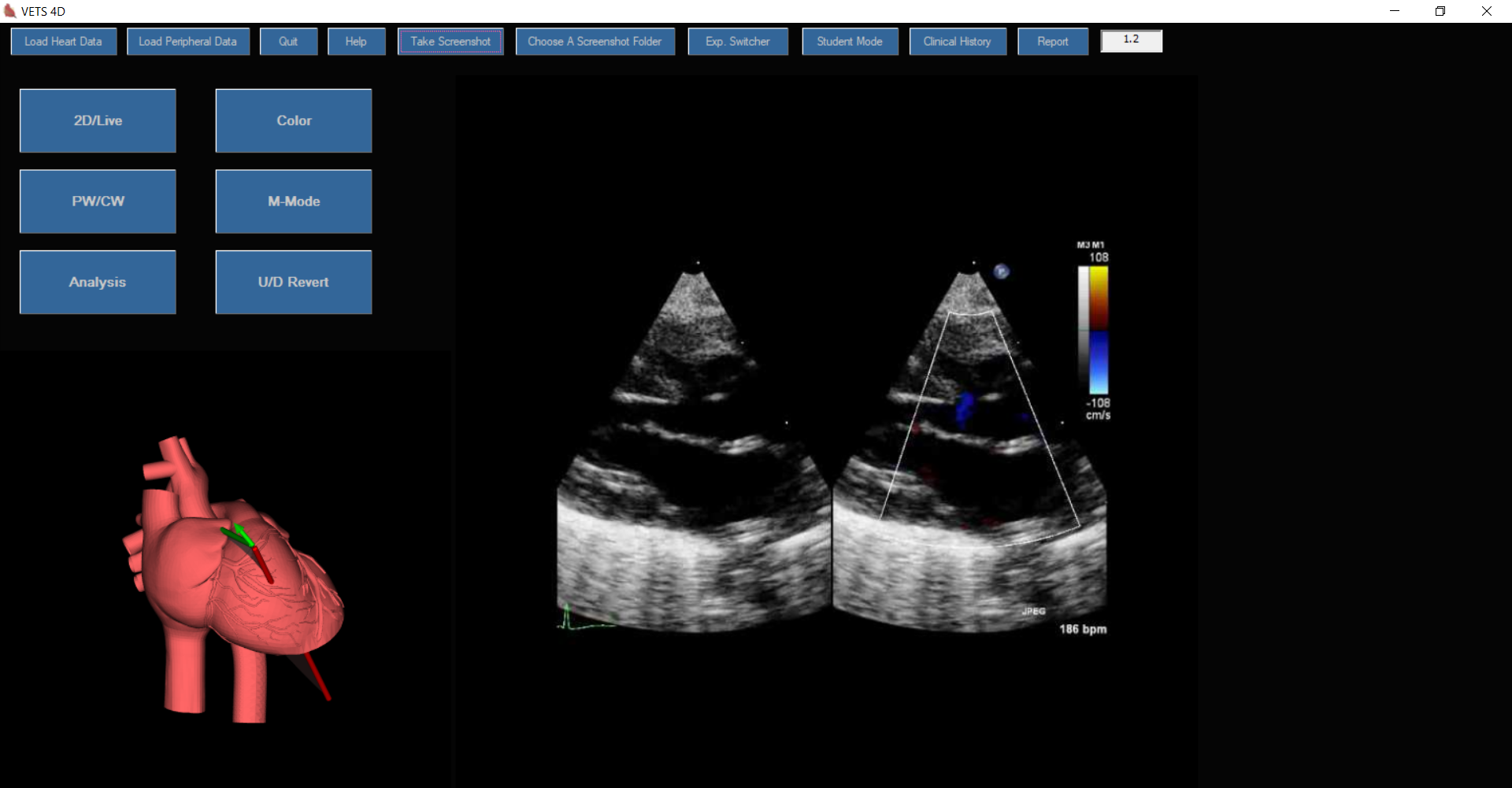

Parasternal long axis 2D-color

Parasternal long axis 2D-Color flow demonstrating overriding of aorta.

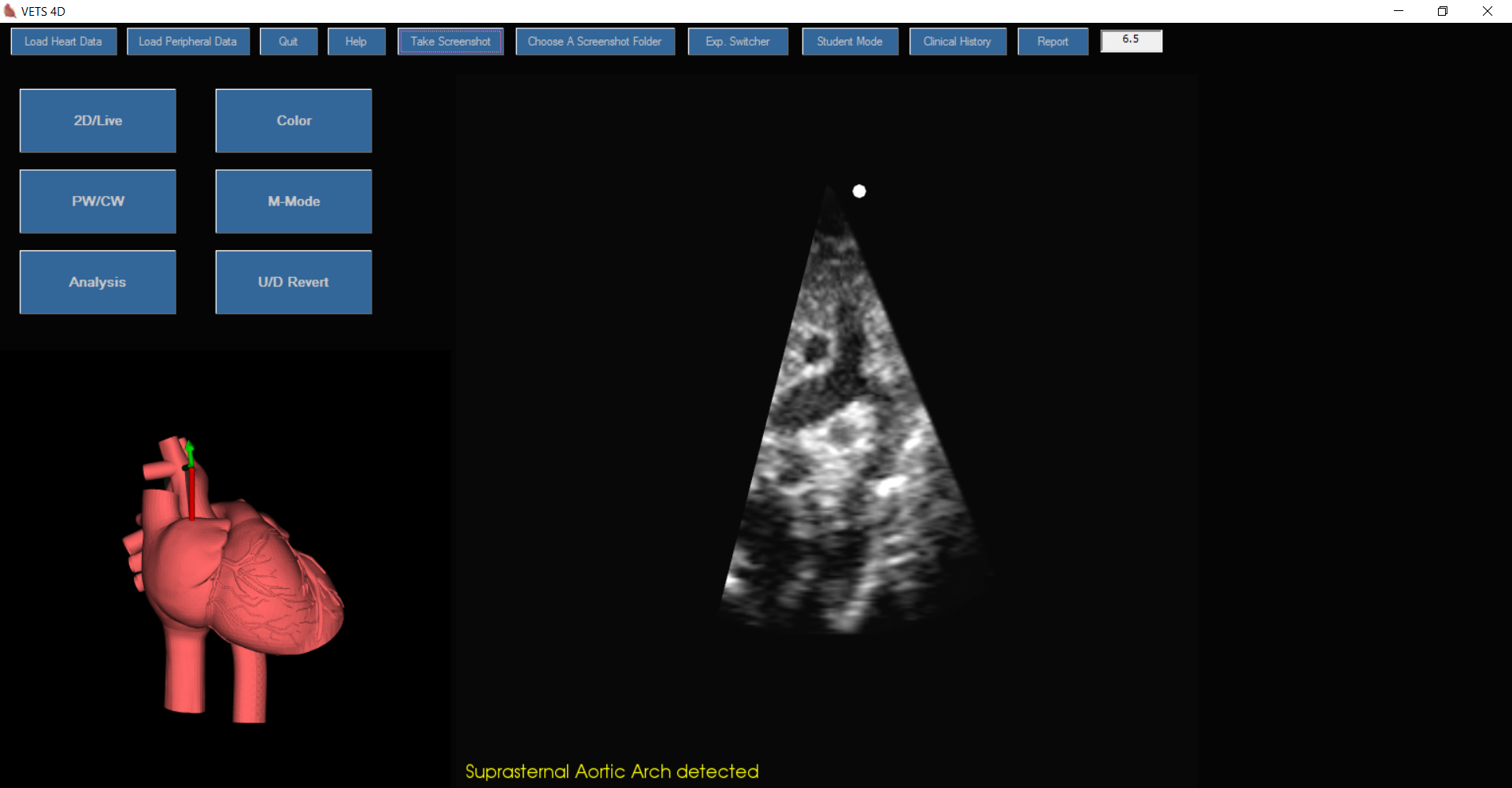

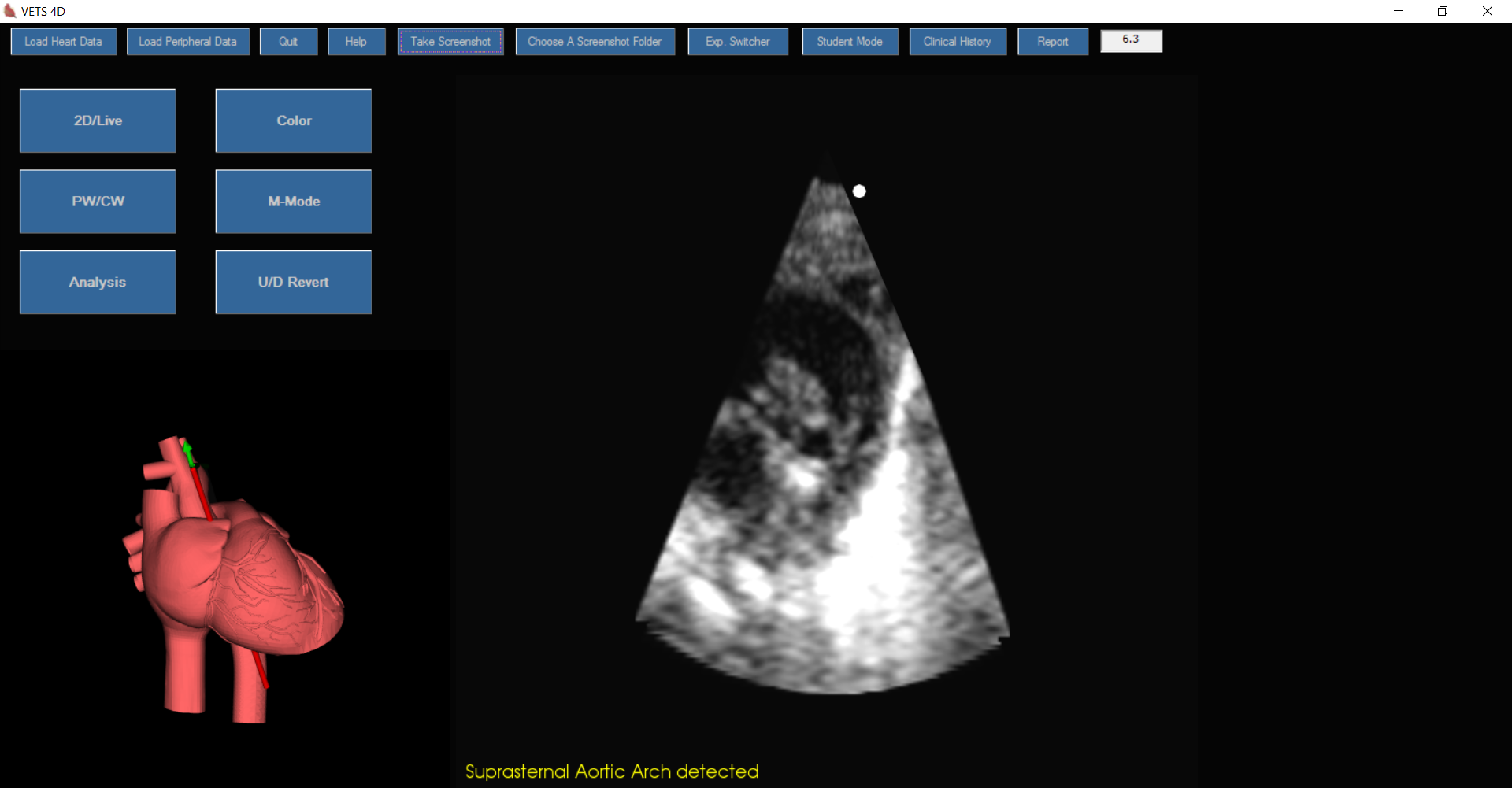

Suprasternal arch/duct view -- 2D

Suprasternal arch/duct view -- 2D

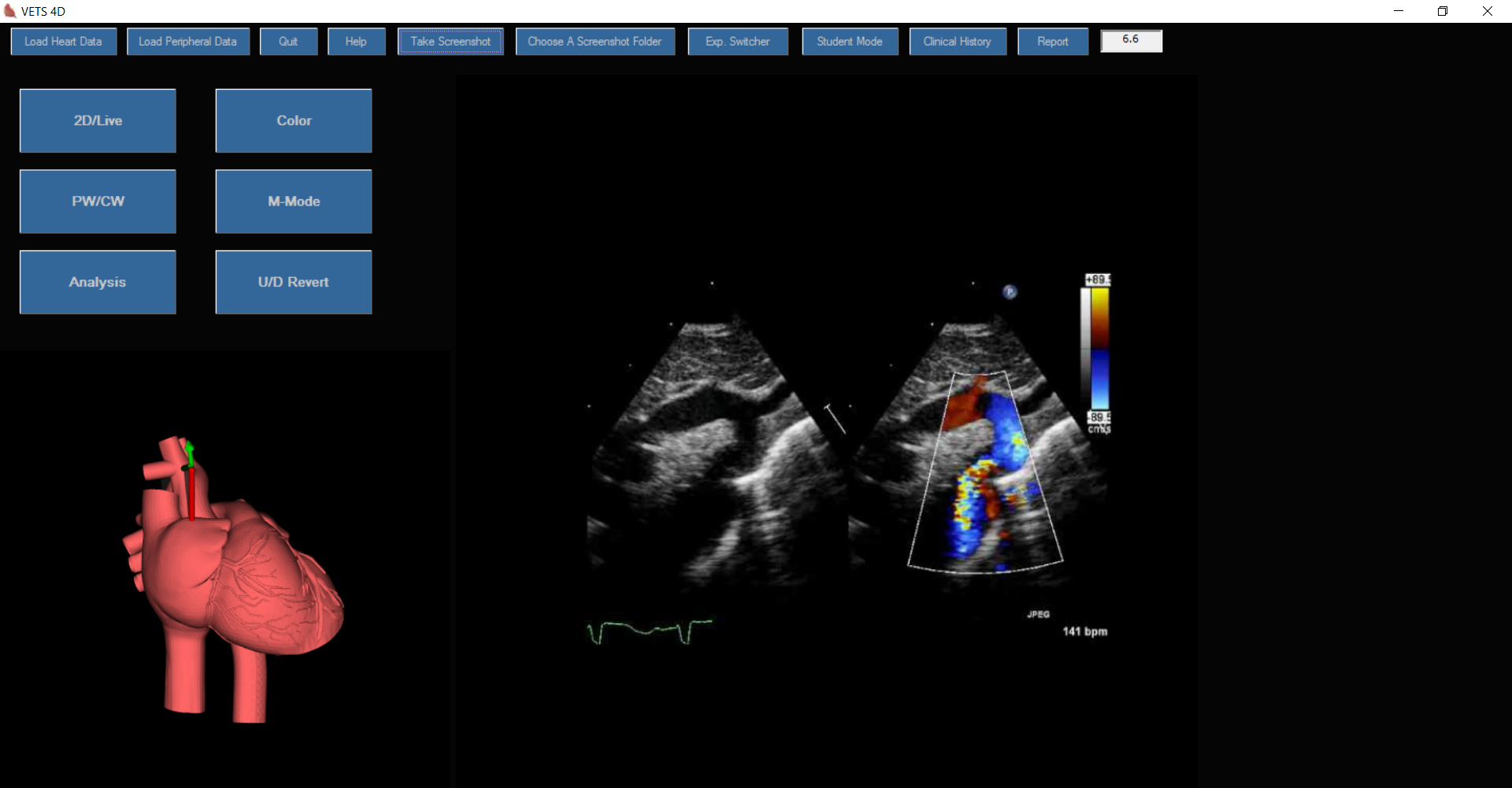

Suprasternal arch/duct view -- color flow

Suprasternal arch/duct view -- color flow, demonstrating a typical tortuous PDA originating from transverse arch in a patient with pulmonary atresia
